Taidacent 24V Input 12.6V/8.4V/4.2V 2A Lithium Battery Wireless Magnetic Charging Kit - LED Indicator & Protection Module for Power Banks, DIY Projects, and Portable Device Charging (8.4V Output)

Product Description

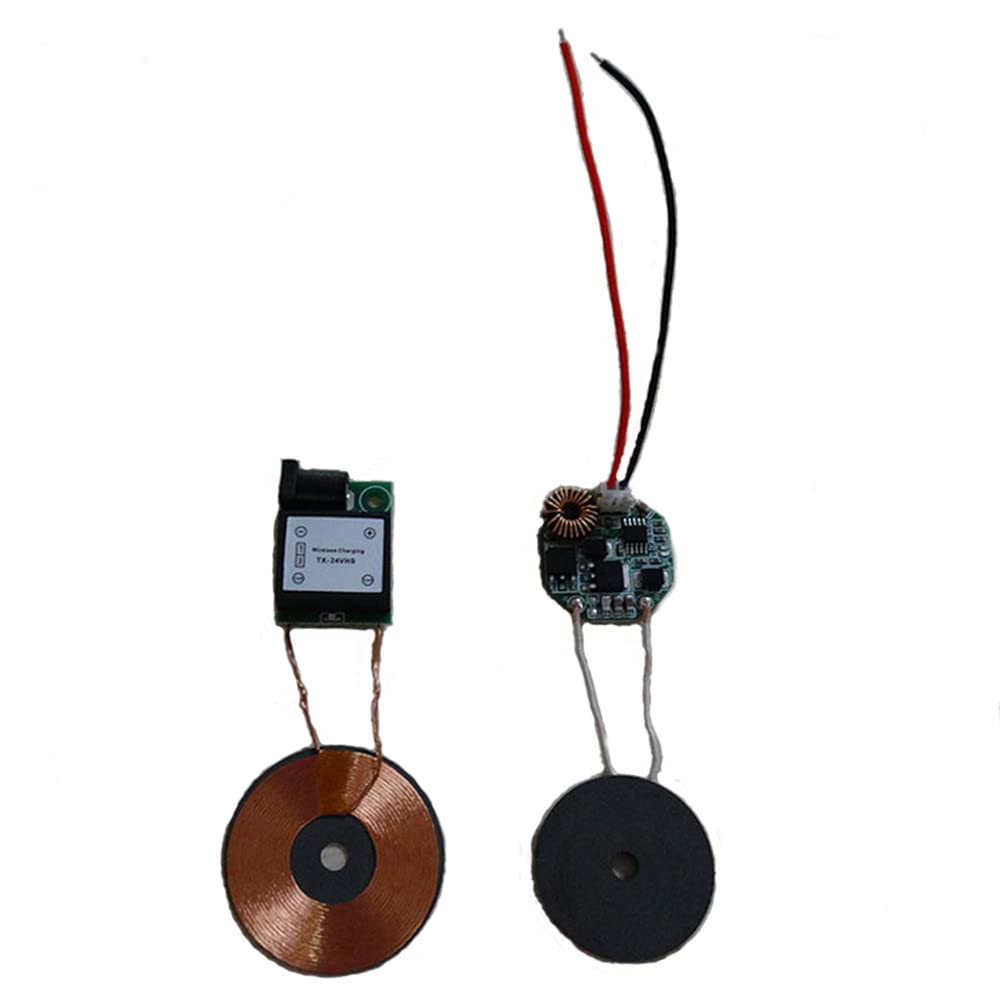

Transmitter Module Input voltage: 24VDC Input current: ≤1.5A Module size: 33mm*24mm*12mm Connection method: 5.5-2.5-2.1DC seat Coil size: outer diameter 43mm*thickness 2mm (including magnetic isolation sheet) Working indication status: The working indication is always on when connected to the 24VDC power supply, and the indicator light flashes during charging when the battery is connected to the receiver, and is always on when it is fully charged. When the indicator light is off, it is faulty or damaged Receiver module Input voltage: 4.2V; 8.4V; 12.6V optional Output current: 2A (maximum current limit 2A) Work indication status: The red light is always on during charging, the red light is off, and the blue light is on when the battery reaches 95%. It will automatically disconnect after being fully charged! Module size: 30mm*thick 9mm Coil size: outer diameter 35mm*thickness 3.5mm (including magnetic isolation sheet) Note: The transmitting coil faces the receiving coil surface, and the distance must be greater than 6 mm. There can be no metal in the middle of the two coils, and the black magnetic isolation sheet is on the back.
