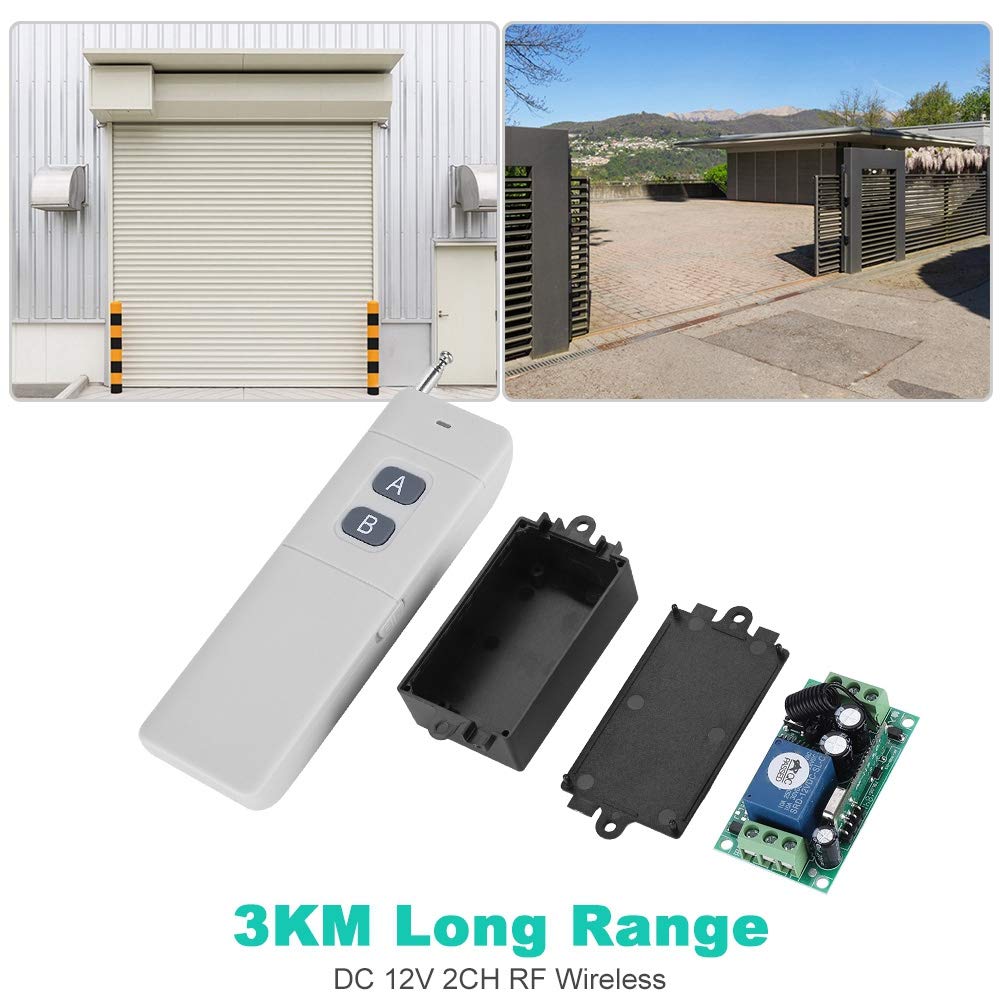

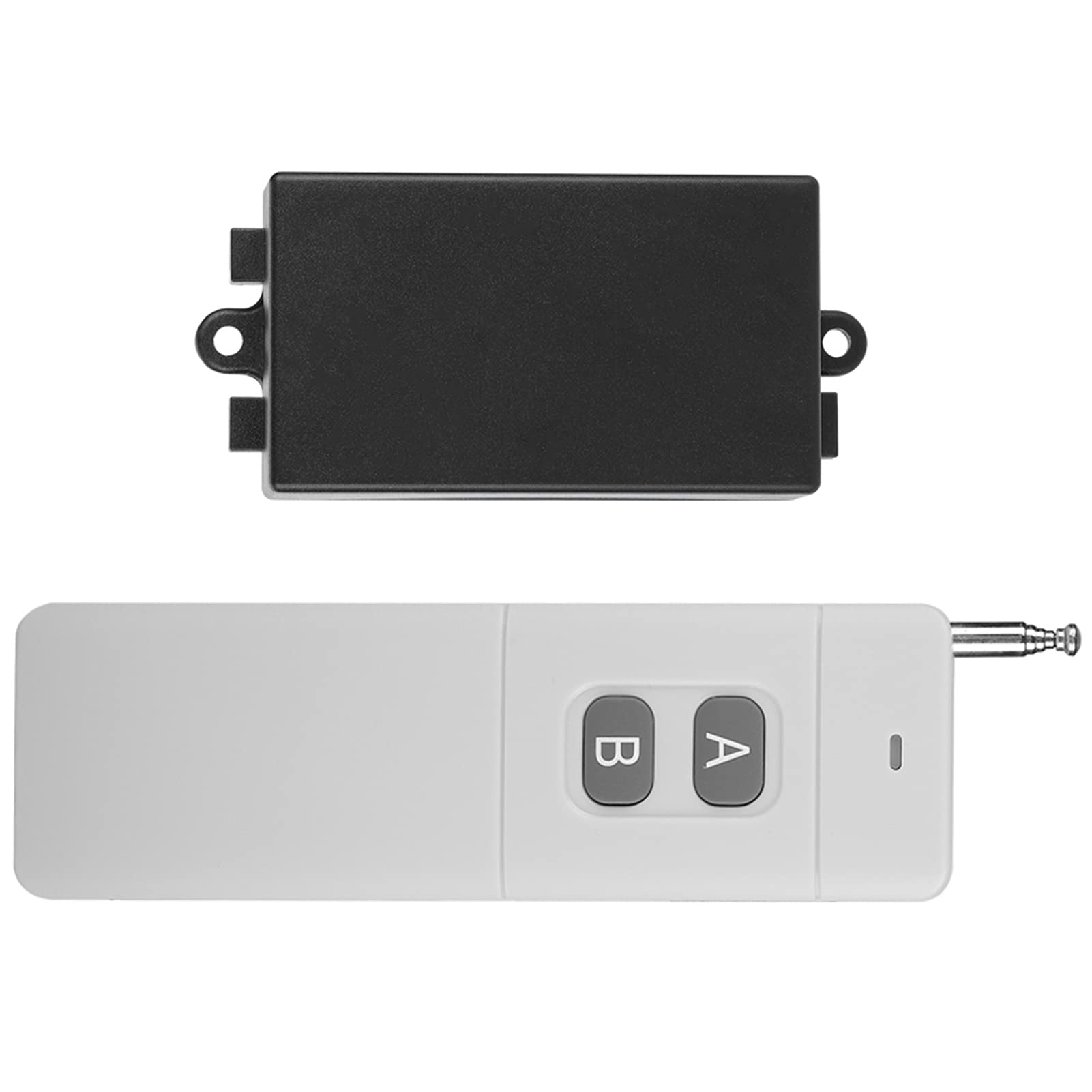

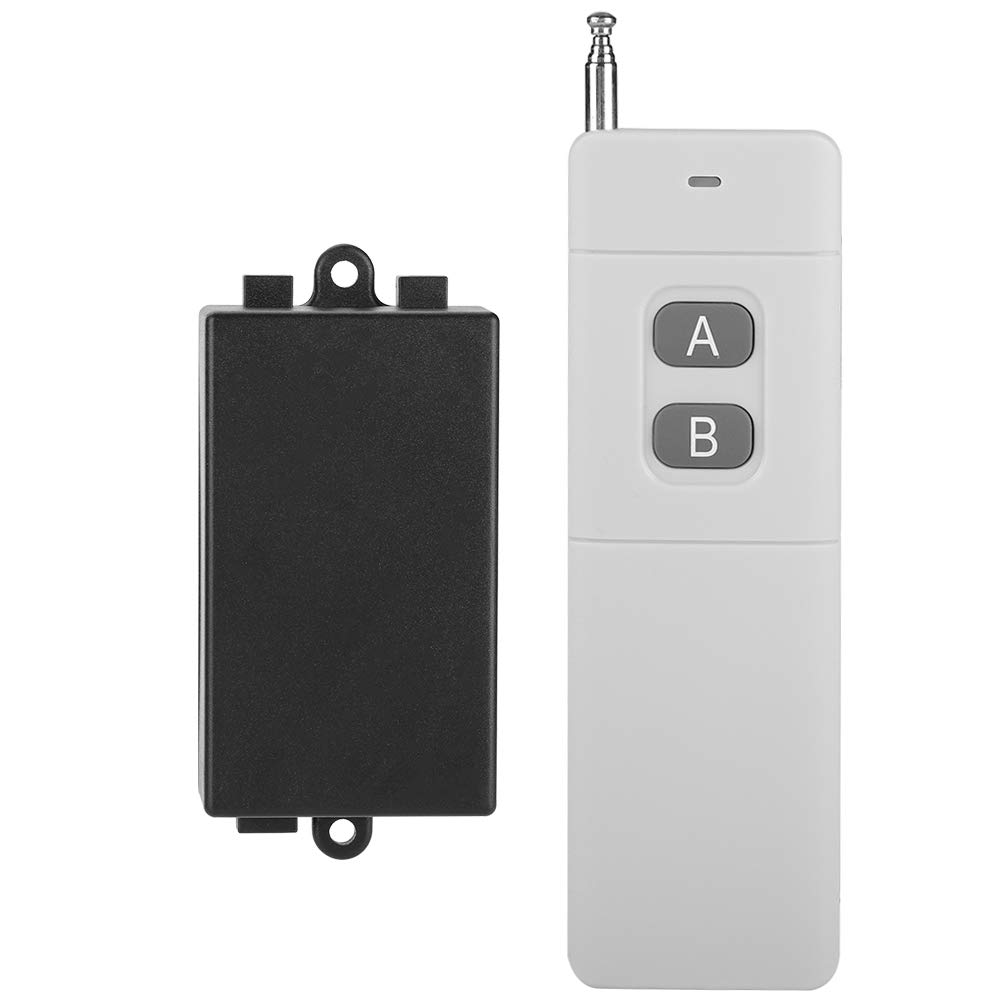

12V 2CH Wireless Remote Control Switch System with 3km Range - Transmitter & Receiver for Lights, TV, Motor, Fan, Camera | Home Automation & Smart Device Control
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:34791682
Product Description

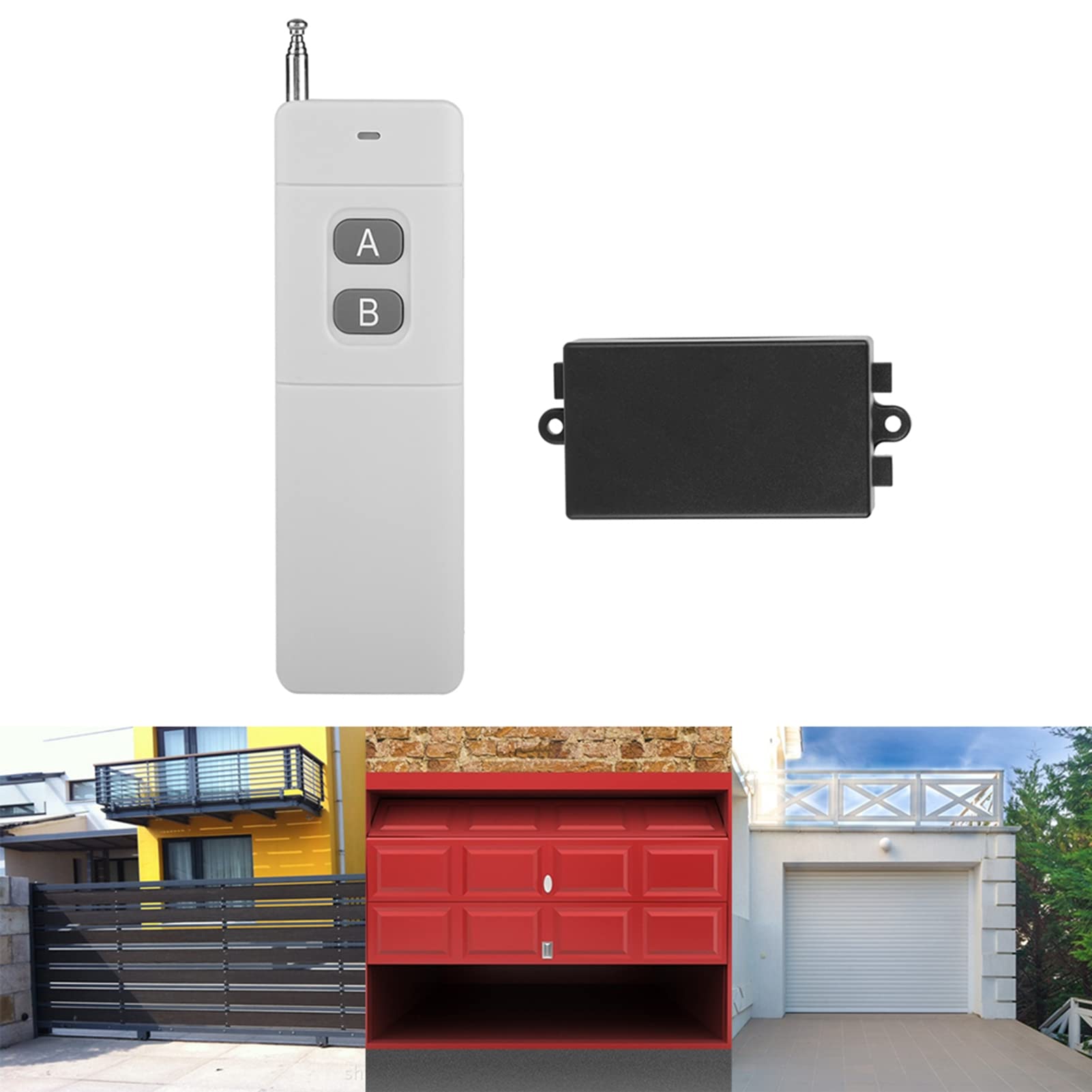

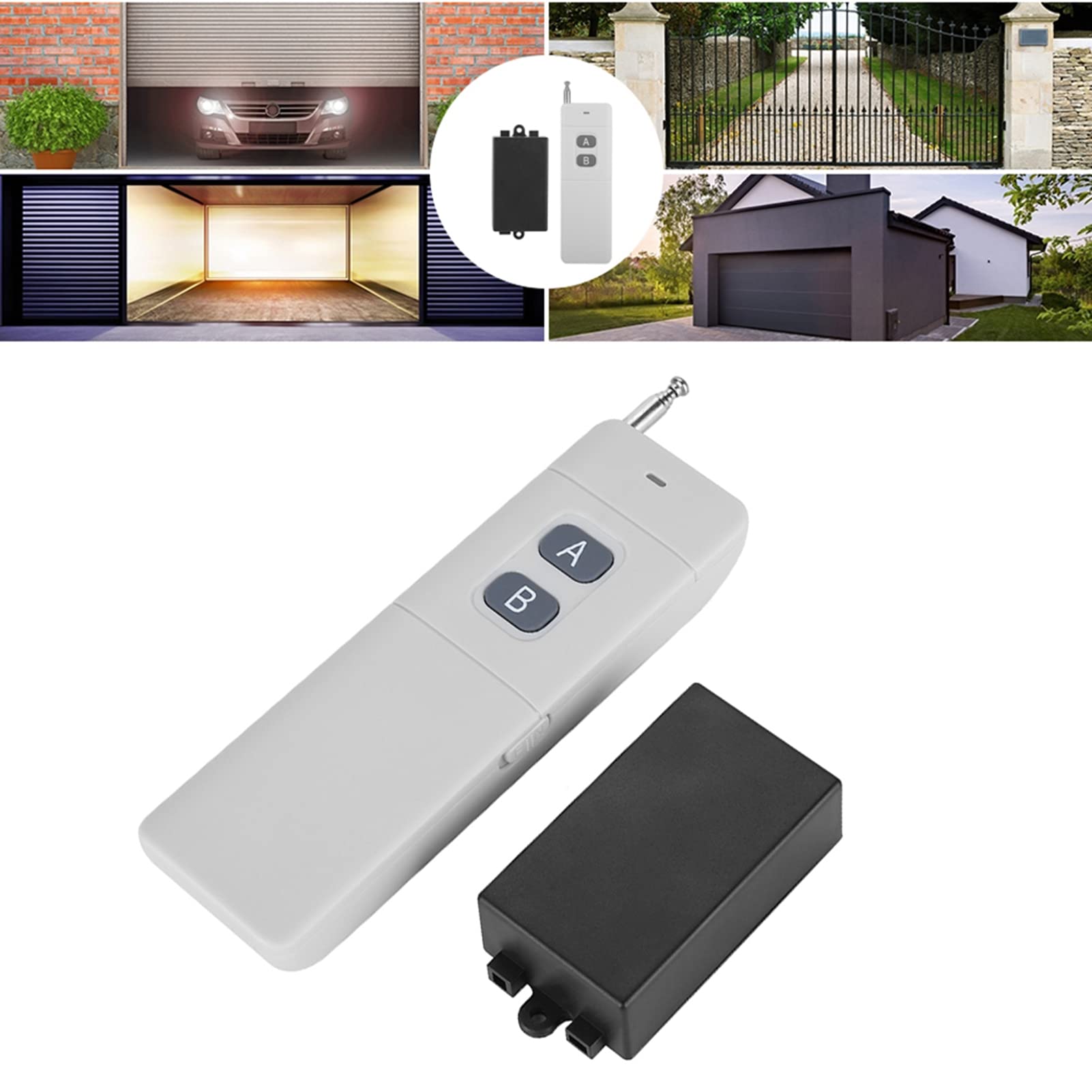

Remote Control Switch System Previous page Wireless Controller Wireless single channel remote control switch can be used for garage door control, lighting control, remote curtains, access control systems and various motor control systems. Modes: 1. Toggle/Self-Lock: Press->On; Press again->Off - Press one button for one time is working/ON .press the same button again is stop/OFF.(1 channel switch need 1 button remote control (transmitter). Modes: 2. Latched/Inter-Lock: Press->On; Press other button->Off - Press one button is working/ON ,press another button is stop/OFF. ( 1 channel switch( receiver) need 2 buttons remote control (transmitter). Modes: 3. Momentary/Jog: Press and hold->On; Release->Off - Keep pressing one button is working /ON. loosen your finger is stop/OFF. (1 channel switch(receiver) need 1 button remote control (transmitter)). Next page Learn Code and Remove Code: 1. Learn: Press the learning code .the indicator from on to off, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it means you learn it correctly.2. Remove: Press the learning button about 8 seconds, the indicator turns on to off, it means the Code had been removed correctly. How to Use: Jog Learning: Press the control panel learning button once, the LED indicator flashes once and then goes out, and then press the remote control button that needs to be coded, the control panel LED indicator flashes several times in succession, indicating that the code is successfully coded.Self-locking Learning: Press the control panel learning button twice, the LED indicator flashes 2 times and goes out, and then press the remote control button that needs to be coded, the control panel LED indicator flashes several times continuously, indicating that the code is successfully.Interlocked Learning: Press the learning button on the control panel 3 times, the LED indicator flashes 3 times and goes out, and then press the A button and B button of the remote control that need to be coded, the LED indicator of the control board flashes several times continuously, indicating that the code is successfully coded.Delay 5 Seconds: Press the control panel learning button 4 times, at this time the LED indicator flashes 4 times and goes out, and then press the remote control button A that needs to be coded, the control panel LED indicator flashes several times continuously, indicating that the code is successfully coded.Delay 10 Seconds: Press the control panel learning button 5 times, the LED indicator flashes 5 times and then goes out, and then press the remote control A button that needs to be coded, the control panel LED indicator flashes several times continuously, indicating that the code is successfully coded.Delay 15 Seconds: Press the control panel learning button 6 times, at this time the LED indicator flashes 6 times and goes out, then press the remote control A button that needs to be coded, the control panel LED indicator flashes several times continuously, indicating that the code is successfully coded.***Code Clearing Method***: Keep pressing the learning button for about 8 seconds. The indicator light flashes several times and then goes out, indicating that the code clearing is successful. Previous page Next page What does the F/N bond do? The protection function, push to F, press the switch is invalid, and the same function as the screen lock of the mobile phone. How many meters is the remote control? Remote control distance: 0‑3000 meters (ideal distance without blocking or interfering signals, blocking and signal interference will rise and fall by about 10%‑90%). Specification Material ABS Color Black(Receiver) + Gray (Transmitter) Power Supply 9V Battery (NOT included) Channel 2 CH Remote Control Distance 0-3000m Encode Fixed code, soldering Decode Fixed code, soldering Power Supply DC 12V Operating Temperature -40° to +80° Receiver 8 * 3.5 * 2cm / 3.1 * 1.4 * 0.8in Remote control 15 * 4 * 2.5 cm / 5.9 * 1.6 * 1.0in Package Weight 92g Package Included 1 * 3KM Remote Control Transmitter (Battery is not included!), 1 * Remote Receiver Module (Including shell)
Product Features

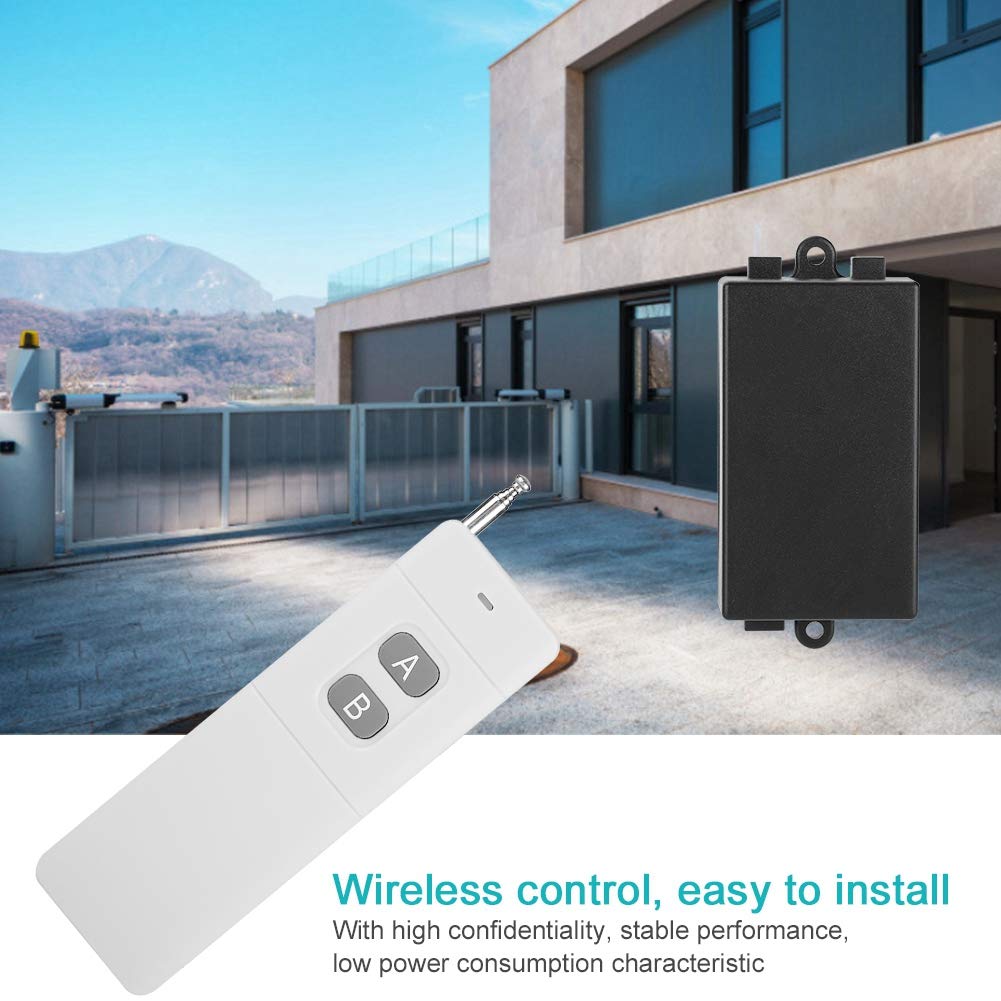

Advantages long control range, high confidentiality, stable performance, low power consumption, plug and play.

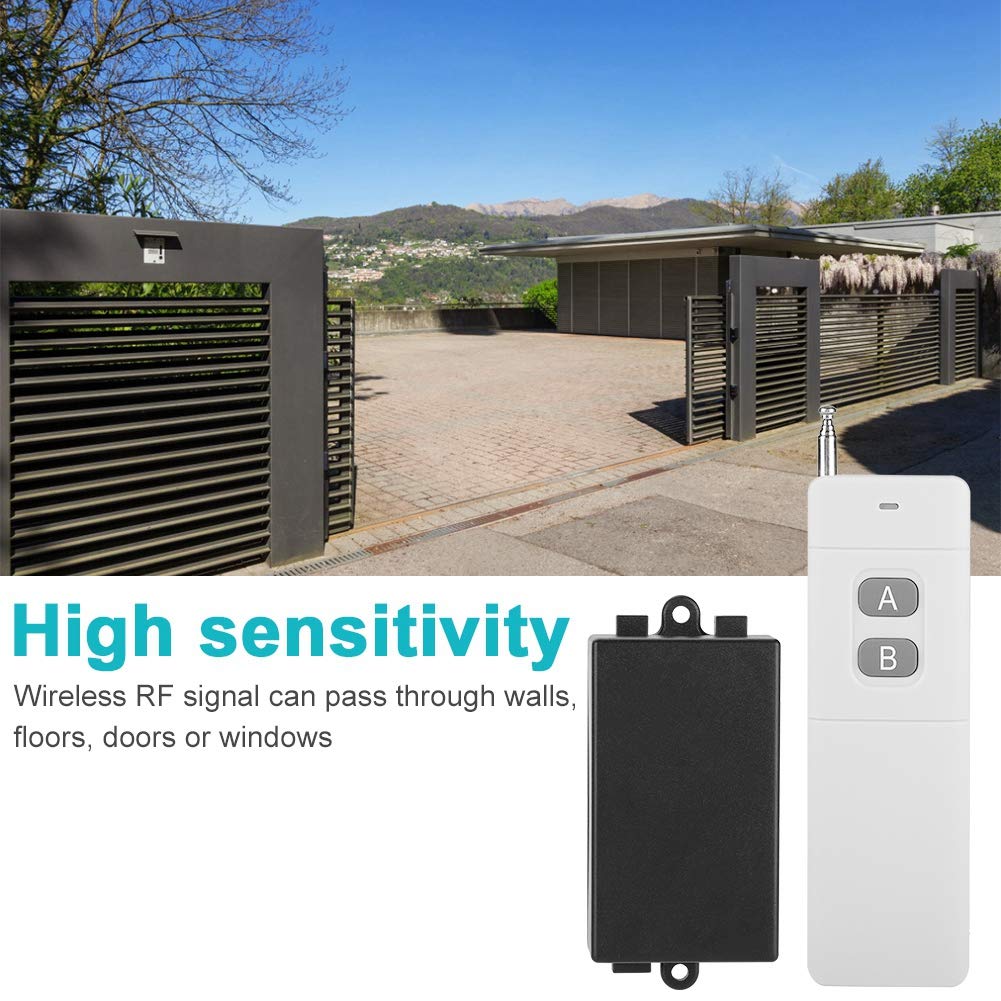

High sensitivity Wireless signals can pass through walls, floors, doors or windows without being blocked.
Very convenient You can use the transmitter to turn the receiver on/off anywhere within the remote control distance.
Learning function 1. Learn Press the learning code. The indicator lights from on to off, release your finger, press any button on the remote control, the indicator light flashes 2 times, indicating that you are learning correctly. 2. Delete Press the learning button for about 8 seconds, the indicator light goes out, indicating that the code has been deleted correctly.
Easy to use wireless control, easy to install, directly replace old or broken. This product can control lights, TVs, motors, fans, cameras, video signals, audio signals, electric doors / locks / windows.
Customer Reviews
Other reviews are negative due to the lack of documentation and the receiver enclosure not being suitable for the circuit board to attach. Noted...however, this is a very inexpensive unit that is perfect for my use (switching a well pump that is over 3/4 mile from here). The unit has a three way jumper (position 1, position 2 and jumper removed) on the receiver board. In one position the A button on the transmitter switch turns on the relay and the B button turns it off. In the other position the A turns relay on then another press of the A button turns it off. Removing the jumper altogether makes pressing the A button turn the relay on and releasing the A button turns it off. Haven't figured out the momentary push button on the receiver board yet - doesn't seem to affect anything. The only thing I have not tested yet is its range. If it will get down the way 1 mile then we're good to go. The receiver (and the transmitter as well) can easily be refitted with external antennae that will provide a dipole ground plane for added range. Anyone with just a little R.F. knowledge can slam one of these together in 30 minutes. I am currently using other previous versions (that the vendor no longer offers) of this same circuit and they operate perfectly at the distance I require, so I have no reason to think this one won't as well.For 15 bucks...(so far) this little guy has my upvote. Will make 5 star review if it performs at-range.
